Drone Use in Evacuation Route Mapping

When disasters hit, drones are transforming how evacuation routes are planned. They provide real-time, high-resolution maps and 3D models within hours, replacing outdated and slow ground surveys. This saves lives by helping emergency responders identify safe paths, locate trapped individuals, and allocate resources efficiently.

Key Benefits of Drones in Evacuation Mapping:

  • Speed: Map up to 400 acres/hour with fixed-wing drones.
  • Access: Reach remote or inaccessible areas without runways.
  • Data Quality: Use advanced sensors like LiDAR, photogrammetry, and thermal imaging for detailed insights.
  • Safety: Operate remotely, reducing risks to personnel.

How It Works:

  1. Data Collection: Drones use sensors to capture terrain, elevation, and heat signatures.
  2. Processing: Software like PIX4Dreact creates maps in minutes, even offline.
  3. Analysis: AI identifies hazards, blocked roads, and alternative routes.

Drones are reshaping disaster response by making evacuation planning faster, safer, and more accurate. Read on to explore how they work, the tools used, and real-world success stories.

School drone club maps tsunami evacuation routes in Westport, WA

Drone Data Collection Methods

The success of using drones to map evacuation routes hinges on the sensors and data collection techniques they employ. Modern drones utilize three main methods: photogrammetry for visual mapping, LiDAR for detailed terrain analysis, and thermal imaging for low-visibility conditions. Each technique delivers unique insights that help emergency planners make better decisions. Here’s a closer look at how these methods contribute to evacuation route mapping.

Photogrammetry for 2D and 3D Mapping

Photogrammetry involves transforming overlapping photos into detailed 2D maps and 3D models by matching points within the images. Using RGB sensors equipped with mechanical shutters, drones capture high-resolution photos while minimizing motion distortion. This method relies on precise flight planning, typically with an 80% overlap and sidelap, to ensure seamless coverage and consistent lighting. The result? Comprehensive maps and models that are invaluable for planning evacuation routes.

LiDAR for Elevation and Terrain Analysis

LiDAR (Light Detection and Ranging) uses laser pulses to measure distances, creating highly accurate 3D representations of terrain and structures. Unlike photogrammetry, LiDAR produces millions of data points per square meter, allowing it to map disaster zones with incredible detail. One standout feature of LiDAR is its ability to penetrate dense vegetation, providing ground-level models even in heavily forested areas. For example, a single aerial LiDAR survey captured over 3.2 billion data points.

"The impact of this survey approach is truly astonishing. It removed the need for a painstaking ground survey and the speed of delivery of such detailed results is impressive. It has accelerated our understanding - the results indicate the Pueblo was more extensive than we had previously imagined."

  • Mark D. Varien, Executive Vice President of the Research Institute at Crow Canyon Archeological Center

For evacuation planning, LiDAR is especially useful for detecting subtle elevation changes that might go unnoticed in standard photography. This capability helps identify areas at risk for flooding, landslides, or other terrain-related hazards. Its precision also reveals damage to infrastructure like roads and bridges.

Thermal Imaging for Low-Visibility Conditions

Thermal sensors detect heat signatures, making them essential for search and rescue operations and for pinpointing safe routes when visibility is limited by smoke, fog, or darkness. During evacuations, thermal imaging provides critical insights that traditional cameras can't, such as identifying trapped individuals or hazards. Multirotor drones, with their ability to hover precisely, are particularly effective for focused thermal scans. This technology is especially valuable during nighttime operations or in environments where smoke obscures visual cues, as it can locate heat sources indicating safe shelters, active fires, or people in need of rescue.

Sensor Type Primary Function Key Advantage for Evacuation Mapping
RGB Sensors with Mechanical Shutters Capture high-resolution, color-accurate images for damage assessment and route planning Minimized image distortion for clearer identification of safe paths
LiDAR Sensors Create high-precision 3D models and detect elevation changes Can penetrate vegetation to reveal ground-level conditions
Thermal Sensors Detect heat signatures for search and rescue and low-visibility navigation Identify routes and hazards in smoke, fog, or darkness

The choice of drone type - fixed-wing or multirotor - depends on the specific emergency. Fixed-wing drones, like the WingtraOne, can map up to 400 acres per hour, making them ideal for covering large disaster zones quickly. On the other hand, multirotors excel in detailed analysis, particularly in urban settings or areas requiring thermal imaging for search and rescue.

To ensure accurate data collection, regular calibration and pre-flight checks - covering battery levels, sensor alignment, and GPS functionality - are essential.

Processing and Analyzing Drone Data

Once drone data is collected, specialized software steps in to transform raw images into evacuation maps. These maps are essential for designing precise evacuation routes by identifying key areas of concern and sharing actionable insights with emergency teams.

Real-Time Data Processing Methods

When it comes to disaster response, speed is everything. Modern software can process drone data in minutes, providing rapid insights when they're needed most. Take PIX4Dreact, for example - it creates detailed 2D orthomosaic maps from aerial images without requiring an internet connection. This feature becomes especially critical when cellular networks are down. Using fast-stitching technology, it merges overlapping photos into seamless maps, while tools like PIX4Dcapture automate the image collection process.

A real-world example of this technology in action occurred during Vermont's devastating floods in July 2023. State agencies teamed up with the University of Vermont's Spatial Analysis Laboratory to process drone data quickly using tools like ArcGIS Online, ArcGIS Instant Apps, and Site Scan for ArcGIS. Initially, the team used ArcGIS Drone2Map but later switched to Site Scan for ArcGIS to streamline data sharing. Within hours, they produced interactive maps and 2D/3D visualizations, enabling faster recovery efforts.

"We had a limited time to acquire data near peak flood levels, so we knew we had to move quickly. The fact that we could play a role in getting Vermonters the recovery money that they need and they deserve sooner is incredibly fulfilling for our mission as the state university." - Jarlath O'Neil-Dunne, director of the University of Vermont's Spatial Analysis Laboratory

These swift mapping tools lay the groundwork for advanced analytics, which further enhance disaster response strategies.

AI-Based Bottleneck and Risk Assessment

Artificial intelligence takes drone data to the next level by turning it into predictive insights. AI systems excel at spotting patterns and identifying risks, such as damaged infrastructure, blocked roads, or areas vulnerable to flooding and landslides. By combining real-time data with historical records, these systems can forecast hazards and suggest alternative evacuation routes before disaster strikes.

For instance, after Hurricane Helene hit western North Carolina, emergency teams used AI-enhanced drone analysis to assess damages in just a few hours - a task that would have taken days with traditional ground surveys.

"PIX4Dreact is the benchmark for emergency operational mapping. Using drones is good, but enhancing the information captured by a drone using Pix4D and GIS is even better." - Bastien Alorent, SAS Drone Process

This shift from reactive to proactive disaster management improves collaboration, reduces response times, and ultimately saves lives.

Once analyzed, this critical data needs a secure and accessible platform for hosting and sharing. That’s where Anvil Labs comes in.

Using Anvil Labs for Data Hosting and Analysis

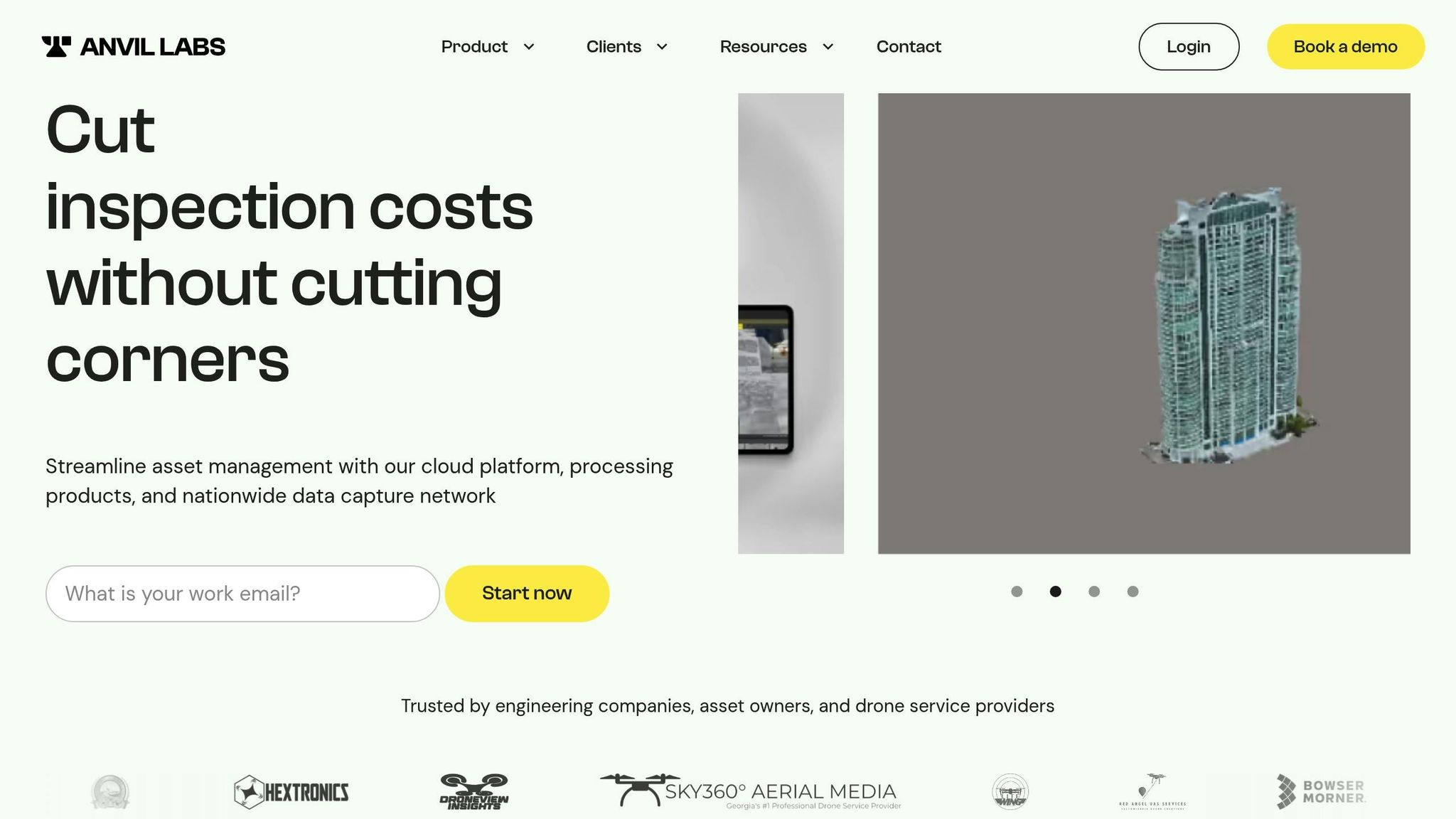

Anvil Labs

Drone surveys produce massive datasets, and managing them effectively requires a platform built for the job. Anvil Labs provides a comprehensive solution, supporting all major drone data formats, including 3D models, thermal imagery, LiDAR point clouds, and orthomosaics. This flexibility allows emergency teams to combine photogrammetry outputs, LiDAR terrain maps, and thermal imaging into a single, integrated analysis platform.

Anvil Labs also offers powerful annotation and measurement tools, which are especially useful for evacuation planning. Teams can mark hazardous areas, measure distances between safe zones, and document road conditions. With cross-device accessibility, updated maps are available on tablets and smartphones, even in remote areas. Secure sharing ensures that team members have appropriate access - field personnel can view maps, while coordinators can edit and update data. Plus, the platform integrates seamlessly with existing GIS workflows and emergency management systems.

Anvil Labs provides flexible pricing options to suit different needs. Plans include an Asset Viewer for $99/month or Project Hosting for $49/project, with data processing available at $3 per gigapixel.

This end-to-end workflow - from rapid processing to secure hosting - empowers emergency teams to create and execute effective evacuation plans. By combining cutting-edge mapping software with a robust hosting platform, responders can act quickly and confidently in critical situations.

Regulatory and Operational Requirements

Using drones for evacuation mapping involves a careful balance between quick action and strict adherence to regulations. Emergency response teams must navigate federal rules and operational guidelines to ensure drone use remains both safe and legal during disaster scenarios.

FAA Regulations for Drone Operations

To operate drones commercially under Part 107, pilots must hold a Remote Pilot Certificate, register each drone (costing $5 per drone for three years), and conduct mandatory preflight checks while keeping the drone within visual line of sight. Additional requirements include obtaining Air Traffic Control (ATC) approvals for flights in controlled airspace, adhering to temporary flight restrictions (TFRs), and reporting accidents that result in serious injuries or damages exceeding $500. Pilots must also pass a recurrent aeronautical knowledge test every 24 months to retain their certification. Moreover, the FAA reserves the right to inspect drones and associated documentation at any time.

Emergencies introduce added complexity, as TFRs can shift rapidly. To stay compliant, operators should use resources like the FAA's B4UFLY app or AirMap to check for updated airspace restrictions. For controlled airspace, the Low Altitude Authorization and Notification Capability (LAANC) system offers near-instant authorization, streamlining operations during critical moments.

While these regulations ensure operational safety, they also highlight the importance of protecting sensitive data during emergency mapping.

Data Privacy and Security in Emergency Mapping

Federal privacy laws don’t directly address drone operations, leaving a patchwork of state and local regulations. The FAA recommends following the National Telecommunications and Information Administration’s voluntary best practices for privacy, transparency, and accountability. For instance, Tennessee law prohibits capturing images of individuals or private property with surveillance intent, while Wisconsin law bans photographing or recording people in places where privacy is reasonably expected.

"Privacy concerns have surfaced as a result of increased [drone] usage, and this necessitates an extensive review of the privacy impacts of the test site program." – Michael Huerta, Acting Administrator of the FAA

To address these concerns, operators must limit data collection to only what is necessary and implement strong security measures to protect sensitive information. This becomes particularly critical when mapping areas involving key infrastructure or residential zones. Remote ID requirements further enhance accountability by allowing authorities to track drone operations. Additionally, operators must avoid flying over facilities deemed sensitive to national security.

Staying compliant with these guidelines ensures that evacuation maps created by drones are both legally sound and operationally reliable. Since FAA regulations and local laws are continually evolving, emergency response teams need ongoing training and updated certifications to maintain compliance while responding effectively to disasters.

sbb-itb-ac6e058

Case Study: Flood Evacuation Route Planning

Real-world flood emergencies have shown how drones can transform evacuation planning from reactive responses to proactive, precise operations. Recent deployments demonstrate clear improvements in response times and safety measures.

Key Challenges in Flood Emergencies

Flood evacuation planning comes with its own set of challenges. One of the most critical - and often overlooked - factors is water velocity. Many flood models focus solely on water depth, missing the dangers posed by fast-moving currents. Professor Tom Cochrane from UC Engineering highlights this concern:

"Most flood evacuation models currently consider water depth alone, ignoring the critical role of velocity".

This oversight can have deadly consequences. The 2024 flooding in Valencia, Spain, is a stark example. Moderate water depths became perilous due to strong currents, creating treacherous conditions for evacuation. Adding to the complexity, rapidly changing flood conditions and inaccessible terrain often render traditional mapping methods ineffective. The financial toll of flooding has also grown significantly, with losses climbing from an annual average of $7 billion in 1980 to $24 billion by 2011, impacting vast areas spanning hundreds of square miles.

How Drones Improved Planning and Response

Drone technology has stepped in to address these challenges, offering faster, more accurate mapping and risk assessment. Their speed and efficiency are particularly valuable in time-critical scenarios. For instance, in 2025, FEDS used senseFly eBeeX fixed-wing drones to map 65 square kilometers (about 25 square miles) of flood-affected areas in Al Ain, UAE, in just two days. This rapid mapping enabled emergency teams to make informed decisions quickly.

Drones also provide real-time situational awareness, which is crucial during evolving disasters. During Cyclone Idai in Mozambique in 2019, the World Food Programme (WFP) deployed a fleet of drones to gather dynamic intelligence. Patrick McKay, drone data operations manager for WFP, explained:

"Each time the pilots came back, they told us the flooded area had gotten bigger".

This constant feedback helped emergency teams adjust evacuation routes as conditions changed, avoiding wasted efforts. Equipped with multiple sensors, drones can distinguish between different types of floods - pluvial (surface water) and fluvial (river overflow) - leading to more accurate hazard assessments. Additionally, the orthomosaics generated from drone data help teams identify safe routes for first responders and essential supplies.

When paired with platforms like Anvil Labs, drones become even more powerful. These platforms centralize drone data - including 3D models, orthomosaics, and thermal imagery - for real-time analysis and secure sharing. By integrating current drone feeds with historical flood data and weather forecasts, AI-powered models can predict flood behavior with remarkable accuracy. This allows evacuation orders to be issued proactively, saving lives and resources.

Drones are now a staple in emergency response, regularly used to assess damage, locate survivors, and monitor shifting floodwaters. With projections suggesting that over 70 million people in coastal cities could face rising flood levels by 2050, drone-enabled strategies are becoming essential for safeguarding vulnerable communities.

Conclusion and Key Takeaways

How Drone Technology Transforms Emergency Planning

Drone technology has made a huge impact on evacuation mapping and disaster planning, offering speed and precision that traditional methods simply can't match. Drone surveys are up to five times faster than standard land-based approaches and deliver centimeter-level accuracy. This efficiency makes them a viable option for organizations of all sizes. Unlike helicopters, which need runways or landing zones, drones can take off from almost anywhere, providing fast and flexible aerial insights.

The ability to gather real-time data and produce highly accurate maps has been a game-changer. Drones allow responders to operate remotely in hazardous areas, reducing risks to human lives. They can reach places too dangerous for people, collecting critical environmental data and even setting up temporary communication networks when traditional infrastructure is down. Their advanced imaging capabilities - like high-resolution photos, detailed 3D models, and orthomosaics - help responders get a clear picture of the situation, enabling them to locate survivors and assess damage more efficiently.

As Brandon DeClet, CEO and co-founder of Measure, explains:

"The real time acquisition of aerial imagery after a disaster will allow for the rapid deployment of personnel to assess damage and save lives. This improved response time will lower the long-term costs of recovery and help to rebuild communities faster."

These advancements are reshaping how disaster response teams operate, opening the door for even more progress in the future.

What’s Next: Future Potential and Anvil Labs’ Role

Looking ahead, the potential for drone technology in emergency planning is immense. Emerging advancements like AI-powered autonomy, machine learning for instant data analysis, and swarm technology promise to take disaster response to the next level. On top of that, improvements in battery technology could extend drone flight times by 20–30%, further enhancing their capabilities.

Anvil Labs is at the forefront of this evolution, offering tools to centralize drone data and enable real-time collaboration across emergency teams. By combining cutting-edge drone hardware, advanced AI systems, and powerful data management platforms, emergency planners can create detailed models before disasters happen. This proactive approach allows for faster damage assessments and the creation of more effective evacuation plans when crises occur.

As drone technology continues to evolve, professionals in the field should prioritize staying current with these advancements. Investing in training for AI tools, sensor systems, and safety protocols will be essential. These innovations have the potential to revolutionize how we respond to emergencies, helping to protect communities more effectively than ever before.

FAQs

How do drones improve the speed and accuracy of mapping evacuation routes?

Drones are changing how evacuation routes are mapped, making the process quicker and more precise. Unlike traditional methods that rely on ground-based surveys, drones can cover vast areas swiftly, capturing high-resolution images and detailed terrain data in a fraction of the time. This aerial perspective gives emergency planners the ability to act faster and develop accurate maps when time is critical.

Equipped with advanced tools like photogrammetry and LiDAR, drones gather up-to-date and highly detailed information. These technologies help spot obstacles, evaluate infrastructure, and plan clear, safe evacuation paths. In urgent situations where every second counts, drones offer the speed and reliability needed to make informed decisions and save lives.

What technologies and sensors do drones use to map evacuation routes in difficult conditions like dense forests or low visibility?

Drones use LiDAR (Light Detection and Ranging) sensors to create detailed 3D maps of evacuation routes, even under tough conditions. By emitting laser pulses, LiDAR can accurately map areas with dense vegetation or limited visibility, making it a powerful tool in challenging environments.

Additionally, thermal imaging sensors play a crucial role by detecting heat signatures, which is especially helpful in low-light or nighttime scenarios. For simpler terrains, drones often rely on photogrammetry, a method that combines overlapping images to produce detailed maps. These technologies work together to ensure drones can map evacuation routes with precision, no matter how difficult the surroundings.

How does AI in drone technology improve hazard detection and evacuation route planning?

How AI Is Transforming Drone Technology for Disaster Response

AI-driven advancements in drone technology are changing the way we handle disaster situations, particularly when it comes to hazard detection and evacuation planning. With the help of advanced algorithms, drones can now rapidly scan disaster-hit areas, pinpoint structural damage, assess dangerous conditions, and create detailed, real-time maps. This means emergency teams can focus their efforts where they're needed most, saving valuable time and resources.

But that's not all. AI-powered drones can also analyze historical data and monitor environmental changes in real time to predict potential risks. This forward-looking capability helps authorities design safer and more efficient evacuation plans, improving overall disaster response and, most importantly, protecting lives.
