Thermal mapping predictions rely on advanced algorithms to forecast temperature patterns and identify anomalies. This is crucial for industries like solar energy, food storage, and building management, where temperature changes can signal equipment issues or inefficiencies. Here's a quick breakdown of the top algorithms covered:
- Convolutional Neural Networks (CNNs): Best for analyzing spatial thermal patterns in images. Achieves high accuracy (e.g., MSE as low as 0.0012) but requires significant computational resources.
- U-Net: Excels in segmenting thermal zones for precise analysis. Ideal for isolating specific areas in thermal images.
- Random Forests: Handles mixed data types and noisy datasets effectively. Suitable for sensor-based applications with quick, reliable predictions.
- XGBoost: Handles complex, nonlinear data relationships. Known for high predictive accuracy and fast real-time analysis.
- CART (Classification and Regression Trees): Simple, interpretable, and efficient for smaller datasets and real-time needs.
- Feedforward Neural Networks (FNNs): Straightforward design for capturing non-linear thermal dynamics but less effective with large datasets.
Each algorithm has unique strengths depending on the data type, accuracy needs, and computational resources. Combining them with AI platforms like Anvil Labs enhances their usability, enabling real-time monitoring and predictive maintenance.
Quick Comparison:
| Algorithm | Best For | Accuracy (Example MSE) | Computational Demand | Real-Time Capable |
|---|---|---|---|---|
| CNNs | Spatial thermal patterns in images | 0.0012 | High | Yes |
| U-Net | Image segmentation for thermal zones | Improves CNN accuracy | Moderate | Yes |
| Random Forests | Mixed sensor and environmental data | 0.01 | Low | Yes |
| XGBoost | Complex, nonlinear data relationships | 0.05 (RMSE) | Moderate | Yes |
| CART | Simple, interpretable predictions | Varies | Very Low | Yes |
| FNNs | Non-linear thermal dynamics | 0.016 | Low | Yes |
The right choice depends on your specific use case, data type, and operational goals.
1. Convolutional Neural Networks (CNNs)
Convolutional Neural Networks (CNNs) are particularly effective at identifying intricate spatial features from thermal images. Unlike traditional regression methods that require manual feature extraction, CNNs automatically detect critical thermal patterns. This makes them indispensable for applications like monitoring photovoltaic system performance and predictive maintenance, where precision plays a key role in ensuring proactive upkeep and system optimization.
Predictive Accuracy
CNNs have proven their accuracy in tasks such as estimating cooling efficiencies from thermal images of solar panel installations. In one study, researchers trained a lightweight 3-layer CNN on 390 labeled images over 50 epochs. The results were impressive: the model achieved a mean squared error (MSE) of 0.001171821, a mean absolute error (MAE) of 1.2%, and an R-squared value of 0.95. In contrast, a traditional Feedforward Neural Network (FNN) showed less reliable performance with an MSE of 0.016, an MAE of 3.5%, and an R-squared value of 0.85.
| Model | MSE | MAE (%) | R-squared |
|---|---|---|---|
| CNN | 0.001171821 | 1.2 | 0.95 |
| FNN | 0.016 | 3.5 | 0.85 |
These metrics highlight the ability of CNNs to capture complex thermal patterns far more effectively than traditional methods. This level of predictive accuracy supports proactive maintenance strategies and ensures systems operate at peak efficiency.
Computational Efficiency
While CNNs are computationally demanding, advancements like GPU acceleration and cloud computing have significantly improved their efficiency. Key factors influencing training efficiency include image resolution, batch size, and network depth. For instance, the lightweight 3-layer CNN used in the study balanced computational load with accuracy, making it a practical choice for large-scale applications. By leveraging GPUs and cloud-based platforms, training and inference times are drastically reduced, enabling rapid analysis of extensive thermal datasets.
Organizations working with thermal imagery can benefit from platforms like Anvil Labs, which simplify the integration of CNN-based tools. These platforms allow thermal data to be processed alongside other spatial information, such as 3D models and LiDAR scans, ensuring that CNNs remain efficient and scalable.
Scalability for Large Datasets
CNNs are well-suited for handling large datasets, thanks to their parallel processing capabilities and efficient batch handling. Techniques like data augmentation - rotating, flipping, or adjusting image brightness - expand training datasets without requiring additional data collection. Automated labeling pipelines further enhance scalability by enabling the continuous retraining of models as new thermal images are generated. This adaptability makes CNNs an ideal choice for industrial applications that rely on ever-growing datasets.
Suitability for Real-Time Analysis
Modern CNN architectures are optimized for real-time analysis, processing thermal images in just milliseconds. This capability transforms thermal monitoring from periodic inspections into a continuous process. Real-time insights allow for immediate detection of issues like overheating or sudden performance drops, enabling swift corrective actions. By supporting ongoing monitoring, CNNs help ensure systems remain operational and efficient, minimizing downtime and enhancing overall performance.
2. U-Net Architectures
U-Net architectures bring a tailored approach to thermal mapping predictions, specifically designed for image segmentation tasks. Unlike traditional CNNs that primarily handle classification or regression, U-Net uses a distinctive encoder-decoder framework with skip connections. These skip connections help retain spatial details throughout the process, making it particularly effective for identifying and isolating specific areas - like solar panels or building surfaces - in thermal images.
What makes U-Net stand out is its ability to generate highly accurate segmentation masks. This is critical in thermal mapping since clearly defining thermal zones directly influences the quality of subsequent predictive analyses. For instance, in industrial settings, U-Net can segment specific machinery or structural components from thermal images. This focused segmentation minimizes background noise, paving the way for more precise analysis and actionable insights.
Predictive Accuracy
By combining U-Net's segmentation with CNNs, prediction accuracy improves significantly. U-Net's ability to isolate relevant thermal zones from unnecessary background data results in cleaner, more targeted datasets. This, in turn, allows regression models to perform better compared to working with raw thermal images.
Computational Efficiency
U-Net strikes a balance between advanced design and efficient processing. Its encoder-decoder structure supports parallel computation, and the skip connections reduce the need for overly deep networks. When paired with GPU acceleration, U-Net can process thermal images at near real-time speeds, making it a practical choice for many applications.
Scalability for Large Datasets
U-Net is well-suited for handling large-scale thermal datasets. Automated data processing pipelines simplify the creation of labeled datasets from existing thermal images, requiring minimal manual effort. Additionally, U-Net adapts seamlessly to distributed computing environments, making it efficient for large-scale operations.
Suitability for Real-Time Analysis
The segmentation power of U-Net makes it ideal for real-time thermal monitoring in large installations. By quickly isolating critical thermal data from live image streams, U-Net supports continuous monitoring and analysis. This capability is particularly important for predictive maintenance, where early anomaly detection is vital. U-Net also integrates well with other advanced tools, such as those offered by platforms like Anvil Labs. These platforms combine U-Net–based segmentation with other spatial analysis features, including 3D modeling, LiDAR data, and comprehensive thermal image processing workflows.
3. Random Forests
Random Forest uses a collection of decision trees to make predictions, combining their outputs to improve both accuracy and stability. This method is particularly effective for managing complex and noisy thermal mapping data, making it a go-to choice for various applications.
The algorithm processes a wide range of thermal data inputs, such as real-time sensor readings, historical temperature trends, environmental conditions, and system parameters. For example, in photovoltaic systems, it can analyze thermal imagery to predict cooling efficiency, enabling proactive maintenance. Similarly, in building management, it processes sensor data from critical components to forecast thermal conditions and fine-tune HVAC performance.
Predictive Accuracy
Studies highlight Random Forest's ability to deliver highly accurate predictions, particularly when analyzing thermal imagery to estimate personalized thermal comfort. For temperature prediction tasks, this algorithm has achieved impressive metrics, including R-squared values over 0.90 and mean squared errors (MSE) as low as 0.01. Its ensemble approach minimizes overfitting and reduces variance compared to single decision tree models. Research also shows it can lower prediction errors by up to 30% compared to standalone decision trees.
Computational Efficiency
Unlike deep neural networks, which require significant computational power, Random Forest offers a more resource-efficient solution. Once trained, it provides quick and low-overhead predictions. Its tree-based structure supports parallel processing, making it ideal for applications where real-time monitoring is crucial, such as industrial thermal mapping.
Scalability for Large Datasets
Random Forest is designed to handle large datasets with ease. Thanks to its ensemble structure and parallel processing capabilities, it can manage hundreds or even thousands of features collected from thermal sensor networks across expansive facilities. Additionally, the algorithm naturally performs feature selection by assessing the importance of each variable across its trees. This helps pinpoint which sensors, environmental factors, or system parameters most significantly impact temperature predictions.
Suitability for Real-Time Analysis
This algorithm shines in real-time thermal analysis, especially for predictive maintenance. Once trained, it quickly generates predictions, enabling continuous monitoring of cooling systems and overall thermal performance in large installations. Its ability to operate reliably even with incomplete sensor data ensures dependable results, making it a key component of advanced thermal mapping systems. Operators can use these insights to quickly identify and address underperforming or failing cooling systems.
Platforms like Anvil Labs integrate Random Forest models with advanced tools such as 3D modeling, thermal imagery analysis, and spatial mapping. This combination enhances industrial site management by linking predictive analytics with comprehensive thermal mapping capabilities.

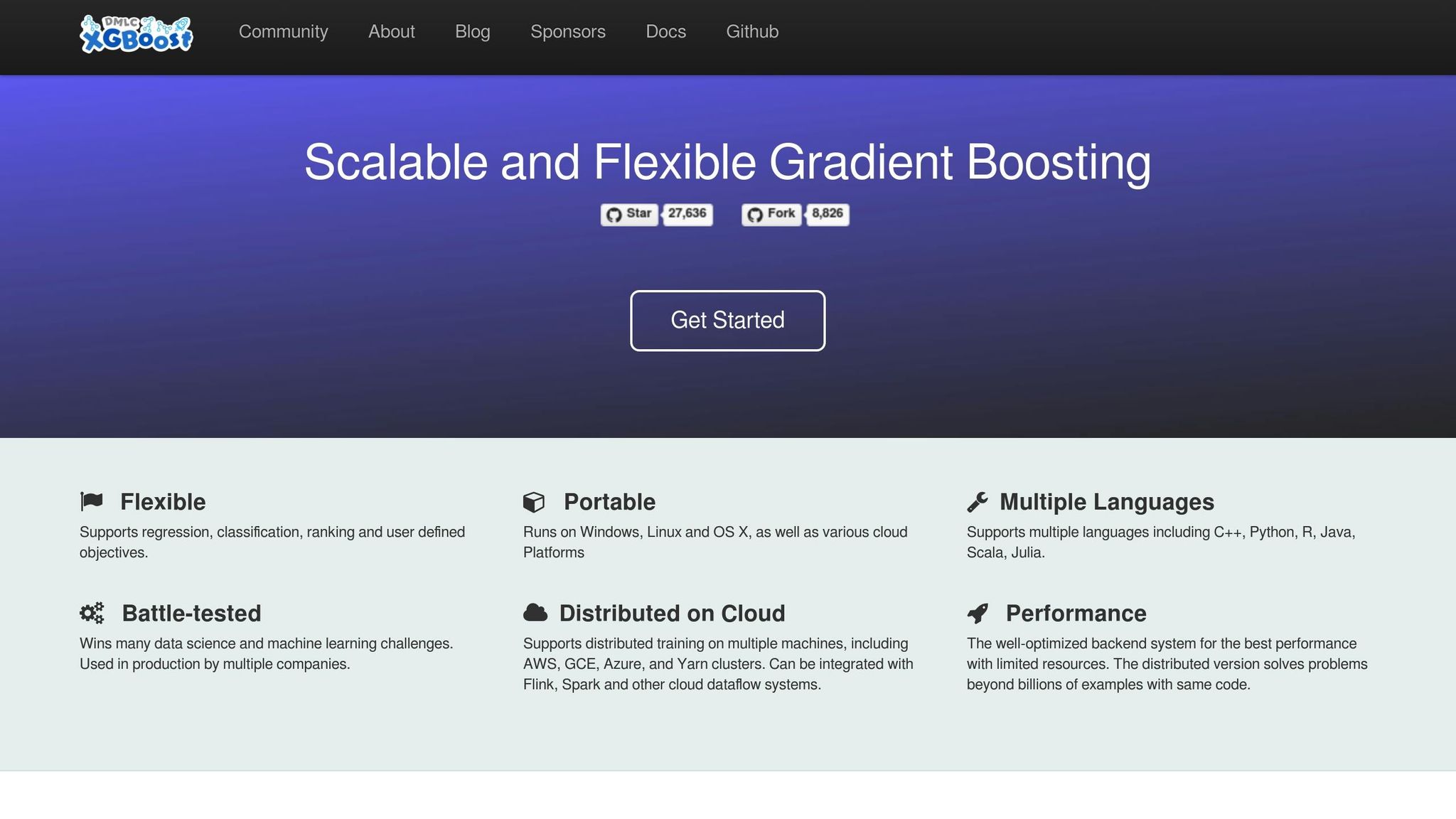

4. eXtreme Gradient Boosting (XGBoost)
XGBoost is a machine learning algorithm built on gradient boosting decision trees. Its strength lies in handling complex, nonlinear relationships in thermal data, making it an excellent choice for predicting temperature patterns influenced by multiple variables. Compared to traditional regression models and even some neural networks, XGBoost stands out due to its resistance to overfitting and its ability to capture intricate dependencies in sensor and environmental data.
This algorithm processes multivariate time-series data from sources like sensors, environmental monitors, and operational logs. By doing so, it effectively captures temporal and spatial thermal dynamics, which is crucial for applications in industrial facilities and building management systems. Let’s take a closer look at its predictive accuracy, computational efficiency, and scalability.
Predictive Accuracy
When it comes to thermal mapping, XGBoost consistently delivers outstanding predictive accuracy. Metrics like Root Mean Squared Error (RMSE) and mean prediction error are commonly used to assess its reliability.
For example, in a study conducted at a private cloud data center, XGBoost achieved an average RMSE of 0.05 and a mean prediction error of about 4.3°F (2.38°C). These results underscore its practical utility in thermal management, as the algorithm minimizes errors by learning iteratively from previous trees. This process enables highly accurate temperature forecasts, which are essential for informed decision-making.
Computational Efficiency
XGBoost is designed for speed. By leveraging parallel processing and efficient memory management, it supports rapid training and prediction, making it ideal for real-time analysis. This capability allows frequent model retraining without causing a heavy computational burden - an important feature for environments where timely predictions are critical.
Similar to other advanced models like CNNs and U-Net, XGBoost’s architecture ensures quick, reliable predictions. Once trained, it can handle continuous monitoring of thermal conditions in large industrial setups with ease.
Scalability for Large Datasets
Another key strength of XGBoost is its ability to scale. It can process tens of thousands to hundreds of thousands of measurements per study area, making it possible to create high-resolution predictive heat maps with accuracies down to 10 meters per pixel.
The algorithm also handles missing data effectively and includes built-in regularization to prevent overfitting, which is especially important when working with large and complex datasets.
Suitability for Real-Time Analysis
XGBoost excels in scenarios requiring real-time thermal predictions. Its ability to deliver fast, incremental model updates makes it a great fit for applications like dynamic HVAC control and industrial process monitoring.
For instance, in the previously mentioned data center study, XGBoost’s real-time capabilities helped reduce peak temperatures by approximately 11.7°F (6.5°C) and cut energy consumption by 34.5% compared to baseline methods. These results highlight its effectiveness in optimizing both thermal management and energy efficiency.
Additionally, XGBoost supports dynamic thermal mapping for building automation and urban planning. While real-time deployment does require careful planning of data pipelines and computational resources, the algorithm’s efficient design makes it well-suited for these challenges.
To enhance its functionality, XGBoost can be integrated with advanced data platforms like Anvil Labs. These platforms offer tools for data hosting, processing, and visualization, enabling users to work with 3D models, thermal imagery, and sensor data seamlessly. This integration not only simplifies deployment but also empowers organizations to leverage XGBoost effectively for industrial-scale thermal mapping, aligning with the broader goal of improving predictive thermal management.
sbb-itb-ac6e058
5. Classification and Regression Trees (CART)
Classification and Regression Trees (CART) are decision tree algorithms designed for both classification and regression tasks, making them highly versatile in thermal mapping predictions. Unlike the complexity of neural networks or ensemble methods, CART offers a straightforward approach, creating a direct link between input features and temperature outputs. This simplicity ensures clear decision-making pathways while meeting the demands for timely and dependable thermal predictions in industrial settings.
The algorithm works by splitting data into branches based on specific feature thresholds, resulting in an interpretable tree structure. This tree not only predicts temperature distributions but also identifies thermal anomalies, making it particularly useful for operational decisions and maintenance planning where clarity is essential.
Predictive Accuracy
CART models deliver reliable predictions, often assessed using metrics like Mean Squared Error (MSE), Root Mean Squared Error (RMSE), and R-squared values. In thermally-aware task scheduling, tree-based and ensemble methods have demonstrated success rates ranging from 74.17% to 82.5%. Achieving high accuracy with CART depends heavily on effective feature selection and robust feature engineering.
Computational Efficiency
A standout benefit of CART is its computational efficiency compared to deep learning models. It demands significantly less processing power and memory, making it an excellent choice for environments with limited computational resources or for rapid prototyping needs.
Scalability for Large Datasets
CART performs well with moderately large datasets but may struggle with very large, high-dimensional data. To address this, preprocessing techniques such as feature selection or dimensionality reduction can enhance its scalability. For extremely large datasets, ensemble methods like Random Forests or Gradient Boosted Trees are often preferred, as they offer improved predictive performance.
Suitability for Real-Time Analysis
CART is particularly effective for real-time thermal mapping, thanks to its fast inference speed and minimal computational demands. This makes it ideal for applications like equipment maintenance and HVAC control, where quick decisions are critical. For example, in building management, CART models have been used to predict temperature changes in critical components using sensor data, enabling preventive maintenance and energy optimization. Additionally, CART's transparent decision pathways provide clear insights into the logic behind predictions, which is vital for justifying real-time actions or adhering to regulatory standards.
For organizations aiming to incorporate CART into broader thermal mapping systems, platforms like Anvil Labs offer tools that handle diverse data types - such as thermal imagery, 3D models, and sensor data - alongside features for data processing, annotation, and real-time analysis.
Next, we’ll explore Feedforward Neural Networks (FNNs), which are tailored for addressing more complex, non-linear thermal dynamics.
6. Feedforward Neural Networks (FNNs)
Feedforward Neural Networks (FNNs) offer a straightforward yet powerful approach to thermal mapping predictions, relying on a direct input-to-output structure. Unlike the simplicity of tree-based models like CART or the spatial processing strengths of CNNs, FNNs excel in capturing intricate temperature relationships through their layered design. This makes them particularly effective for applications like sensor-based thermal monitoring.
FNNs use a series of layers to map thermal inputs to temperature outputs. Their forward-only propagation design not only captures complex thermal dynamics but also keeps computational requirements manageable compared to more elaborate models.
Predictive Accuracy
FNNs deliver dependable predictions in thermal mapping tasks, though their performance depends on the complexity of the data. For instance, a 2024 study in Nature Scientific Reports demonstrated the effectiveness of a 3-layer FNN in predicting cooling efficiency from thermal images of photovoltaic panels. Using 390 labeled images, the model achieved a mean squared error (MSE) of 0.016, a mean absolute error (MAE) of 3.5%, and an R-squared value of 0.85.
In another example, a 2018 study by the U.S. Department of Energy highlighted the advantages of neural network–based models for runtime temperature predictions. These models achieved an average prediction error of about 2.9°C (roughly 5.2°F), outperforming linear regression methods, which averaged around 3.8°C (approximately 6.8°F). This accuracy proved valuable for thermal-aware scheduling, reducing peak system temperatures by as much as 11.9°C (around 21.4°F) and achieving an average reduction of 4.4°C (about 7.9°F).
Computational Efficiency
One of the major strengths of FNNs is their computational efficiency. Thanks to their straightforward architecture, they demand fewer resources compared to deeper models. This makes them an excellent choice for organizations with limited computational power or older infrastructure. Faster training times and lower hardware requirements mean FNNs can be implemented without significant investments in new technology.
Additionally, their streamlined design supports rapid data processing, enabling real-time decision-making. This efficiency makes FNNs a practical option for applications like live thermal monitoring, where quick insights are critical.
Scalability for Large Datasets
FNNs perform well with moderately large thermal datasets but face challenges when handling very large, high-dimensional data like detailed thermal imagery. Unlike models designed to capture spatial relationships, FNNs require preprocessing and feature engineering to manage such datasets effectively.
For large-scale industrial scenarios involving thousands of thermal images, raw images must be converted into numerical feature vectors, and datasets need careful labeling. While this preprocessing adds complexity, it allows FNNs to balance speed and accuracy, making them a reliable choice for many thermal mapping tasks.
Suitability for Real-Time Analysis
FNNs shine in real-time thermal monitoring thanks to their minimal computational requirements. Their ability to continuously process thermal data streams makes them ideal for automated systems that predict future temperature conditions based on historical sensor data.
Integrating FNNs into existing monitoring systems is relatively straightforward. They connect to real-time sensor data streams and automation platforms, processing preprocessed thermal data to generate predictions. These predictions can then trigger automated responses through APIs or middleware that link the model to facility management systems.
For organizations looking to implement FNNs in thermal mapping systems, platforms like Anvil Labs provide tools for managing diverse data types - such as thermal imagery, sensor readings, and 3D models - along with solutions for data processing, annotation, and integration into real-time workflows.
Next, we’ll explore how AI platforms are driving the deployment and management of thermal mapping algorithms in industrial settings.
AI Platforms for Thermal Mapping
Deploying advanced thermal mapping algorithms requires a solid foundation in AI platforms. The algorithms we've discussed, such as CNNs and FNNs, rely on these platforms to bridge the gap between theoretical performance and practical application. These platforms provide the tools and infrastructure necessary to implement, manage, and scale thermal mapping solutions effectively. Let’s explore how they turn algorithmic potential into actionable insights.
Modern AI platforms streamline the complex workflows involved in thermal mapping, from data ingestion and preprocessing to model deployment and visualization. By combining spatial, spectral, and temporal data, these platforms enhance the accuracy and reliability of thermal predictions. For example, platforms like Anvil Labs simplify the process by hosting, processing, and visualizing diverse data types, including thermal imagery, 3D models, and LiDAR scans. This level of integration speeds up the deployment and validation of algorithms in real-world scenarios.
Beyond managing data, these platforms enable real-time analysis and automation. Cloud-based engines process sensor data on the fly, supporting predictive modeling and responsive environmental controls. Organizations leveraging these tools report significant operational improvements, such as completing inspections 75% faster and identifying 30% more defects compared to traditional methods.
In addition to data analysis, automation features allow these platforms to trigger actions via APIs and middleware. This connectivity ensures that predictive models can influence real-time decisions, such as adjusting HVAC systems or sending alerts for equipment monitoring.
Collaborative Features and Secure Sharing
Thermal mapping projects often involve multiple stakeholders, and AI platforms cater to this need with secure data sharing and annotation tools. Engineers, analysts, and facility managers can collaborate within a centralized environment, reviewing and commenting on results. This collaborative approach ensures that insights derived from algorithms are clearly communicated and acted upon, leading to more efficient decision-making.
"My overall experience with the software has been satisfying because of the efficient workflow. I would highly recommend other organizations to use your software simply because of how much value you get for what you pay for... The ROI is clearly marked within the first few uses."
- Angel Rojas, Red Angel Drones
Scalability and Performance Benefits
The scope of modern thermal mapping projects demands platforms capable of handling large-scale data. For instance, urban heat mapping campaigns can generate tens of thousands - or even hundreds of thousands - of measurements per study area. Platforms used by organizations like CAPA Strategies demonstrate this scalability, often producing nine maps and datasets per study area. This level of detail highlights the capacity of these platforms to manage large datasets and deliver granular insights.
Organizations adopting these platforms report considerable cost savings and efficiency gains. Many users have saved hundreds of thousands of dollars compared to traditional methods, with a return on investment achieved in as little as two months. These benefits are largely due to automated workflows, centralized data management, real-time visualization, and scalable deployment of predictive models.
Integration Ecosystem
Modern AI platforms excel in flexibility, offering APIs that connect to external data sources and third-party tools. This allows organizations to enhance their thermal mapping workflows with data from sources like weather services, IoT sensors, and specialized AI/ML frameworks. As interoperability becomes the norm, platforms increasingly support cross-device accessibility and integration with services like Matterport, YouTube, and other analytical tools.
By automating the integration, analysis, and visualization of thermal data, these platforms free teams to focus on interpreting results and making informed decisions rather than managing technical infrastructure. This capability empowers organizations to act quickly and effectively on predictions.
As thermal mapping algorithms grow more advanced, the platforms supporting them play a crucial role in delivering practical business value. By combining data management, real-time processing, collaborative tools, and seamless integrations, these platforms create an ecosystem where thermal mapping solutions can thrive, driving meaningful operational improvements.
Conclusion
Selecting the right algorithm is a cornerstone of operational success. Research highlights that optimized models can cut average temperature prediction errors and lower peak system temperatures by as much as 11.9°F. These advancements directly impact business outcomes, improving thermal management and reducing operational risks.
As we’ve discussed, different algorithms shine in different scenarios. For instance, Convolutional Neural Networks (CNNs) outperform traditional methods, achieving mean squared errors as low as 0.0012, compared to 0.016 for feedforward networks. Meanwhile, Random Forests and regression models offer transparency and reliability, making them ideal for teams working with structured sensor data or requiring interpretable results.
But choosing the algorithm is just the beginning. To fully capitalize on these capabilities, organizations must integrate them into robust platforms. Industrial teams need solutions that handle diverse data types - like thermal imagery, 3D models, and LiDAR scans - while enabling real-time processing and fostering collaboration. This becomes especially critical for large-scale projects that generate immense volumes of data, sometimes hundreds of thousands of measurements per study area.
This integration doesn’t just improve accuracy - it delivers tangible results. Companies adopting advanced approaches report 75% faster inspections and identify 30% more defects compared to traditional methods, often achieving ROI within two months. These gains are driven by automated workflows, centralized data management, and the ability to act swiftly on predictive insights.
For teams ready to embrace the potential of thermal mapping predictions, platforms like Anvil Labs offer the infrastructure to make it happen. With features like thermal imagery processing, cross-device accessibility, and AI tool integration, these platforms transform algorithmic potential into practical, real-world applications. By combining cutting-edge algorithms with purpose-built platforms, organizations unlock a powerful ecosystem that drives operational efficiency and strengthens their competitive edge.
FAQs
What factors should I consider when selecting an algorithm for thermal mapping predictions?
When selecting an algorithm for thermal mapping, there are a few key factors to keep in mind: the type of data you’re dealing with, the precision you need, and the purpose of the application. For instance, if your goal involves complex pattern recognition in thermal images, machine learning models like neural networks might be the way to go. On the other hand, if you're focusing on simple temperature predictions, a basic regression model could do the trick.
It's also important to think about the scope of your project, the computational power at your disposal, and whether you need results in real time. Experimenting with different algorithms and assessing their performance on your specific dataset can guide you toward the best choice for your objectives.
What hardware and software are needed to run algorithms for real-time thermal mapping?
Running algorithms for real-time thermal mapping demands both solid hardware and efficient software working together seamlessly. On the hardware front, you'll need a high-performance computing system equipped with a modern CPU, at least 16GB of RAM, and a dedicated GPU to handle parallel processing tasks. Equally important are thermal imaging devices and sensors that are compatible with your system to ensure precise data collection.
On the software side, you'll need tools or platforms designed for predictive analytics and machine learning. These should be capable of handling large datasets, integrating smoothly with thermal imaging devices, and delivering insights in real time. Cloud-based solutions can be a game-changer here, offering scalability and easy access across multiple devices. Meeting these requirements will set you up for accurate and efficient thermal mapping results.
How does Anvil Labs improve the use of thermal mapping algorithms in industrial site management?
Anvil Labs takes thermal mapping algorithms to the next level with a powerful platform tailored for managing industrial sites using 3D models and spatial analysis. The platform accommodates various data types, including thermal imagery, streamlining the process of analyzing and interpreting essential information.
Equipped with features like annotation, measurement tools, and customizable viewing options, Anvil Labs makes deploying and managing thermal mapping technologies straightforward. Its secure data-sharing capabilities and compatibility across devices enable smooth collaboration and real-time access to insights, helping industrial operations run more efficiently and make quicker, well-informed decisions.
