Drones are a vital part of industries like oil and gas, construction, and agriculture, collecting and transferring sensitive data such as 3D models, LiDAR scans, and thermal imagery. However, their reliance on APIs for data transmission creates serious security risks. Weak API security can lead to stolen data, intercepted telemetry, or even unauthorized drone control.
To combat these threats, organizations must secure their APIs with measures like OAuth 2.0 authentication, TLS encryption, and rate limiting. Key vulnerabilities include broken authorization, unencrypted data transmission, and poor input validation, all of which attackers can exploit to access or manipulate sensitive information.
Key Takeaways:
- Authentication Risks: Issues like weak JWT implementation and broken object-level authorization can expose flight logs and telemetry.
- Data Transmission Risks: Unencrypted protocols like MAVLink leave data vulnerable to interception.
- Input Validation Failures: Poor validation allows attacks like SQL injection and mass assignment.
- Solutions: Use HTTPS/TLS, secure JWTs, API gateways, and granular access controls to protect drone data.
By implementing these security measures, platforms like Anvil Labs ensure drone data is protected from threats while enabling safe collaboration and efficient data handling.
HANDS-ON WORKSHOP | API Security Flight School: Aviata Chapter 7
sbb-itb-ac6e058
Common API Security Issues in Drone Data
Drone APIs often have vulnerabilities that can jeopardize telemetry, flight data integrity, and even operational control. By 2024, Gartner predicted that API attacks would become the most common type of web application attack. In fact, nearly all organizations reported experiencing at least one API security issue in the prior year, according to industry studies. These vulnerabilities generally fall into three key areas: authentication, data handling, and input validation.
Authentication and Authorization Problems
One major issue is Broken Object Level Authorization (BOLA). This happens when an API accepts user-supplied identifiers like drone_id or pilot_id without verifying ownership. This flaw allows attackers to manipulate ID values and gain unauthorized access to other users' flight logs or live telemetry. Similarly, broken property-level authorization (or mass assignment) can occur when APIs let attackers update sensitive fields - like user roles or drone permissions - by including unexpected parameters in JSON requests.
Weak JWT (JSON Web Token) implementations also pose risks. For instance, accepting the "none" algorithm or failing to enforce token expiration can lead to account takeovers in drone management systems. Another common mistake is storing API keys in query parameters, which leaves them exposed in server logs, browser histories, and Referer headers.
Data Transmission and Storage Vulnerabilities
Even if access controls are in place, the way data is transmitted and stored can create additional risks. For example, the MAVLink protocol, widely used for drone telemetry, lacks encryption by default. Without message signing, it becomes vulnerable to data injection and unauthorized control. Similarly, weak security in Wi-Fi control systems and insecure Bluetooth pairing modes (like "Just Works") allow attackers to intercept packets or inject commands through man-in-the-middle attacks. Additionally, passive RF monitoring can detect UAV emissions across frequencies from 300 MHz to 6 GHz, exposing command and control links.
Storage vulnerabilities are another concern. If a drone is lost or captured, sensitive onboard data - such as sensor logs, AI models, or mission details - can be exposed unless storage encryption tools like LUKS or gocryptfs are used. Companion computers, which manage drone peripherals, often have misconfigured open ports (e.g., SSH or FTP), creating opportunities for data theft.
Input Validation and Rate Limiting Failures
Poor input validation is a frequent issue. Attackers can exploit this weakness to perform mass assignment attacks, altering fields like is_admin or ownership status by including them in improperly filtered request bodies. APIs that process user-supplied URLs without proper checks are also vulnerable to SQL injection or Server-Side Request Forgery (SSRF) attacks.
Another problem is the lack of rate limiting. Without it, attackers can scrape data, enumerate accounts, or launch denial-of-service attacks that drive up cloud infrastructure costs. For instance, APIs allowing 10,000 login attempts per minute make it easy to brute-force a 4-digit PIN in under a minute. Excessive data exposure is another risk - APIs that return full database objects, including sensitive information like PII or password hashes, rely on client-side filtering instead of enforcing strict server-side controls.
Addressing these vulnerabilities is essential to ensure secure API integration in drone data systems. By focusing on these critical areas, organizations can better protect their systems and the sensitive information they handle.
Solutions for Securing Drone Data APIs
Three-Layer API Security Framework for Drone Data Protection
Once you've pinpointed the key vulnerabilities in drone data APIs, the next step is implementing solutions to safeguard them. Protecting these APIs requires a multi-layered approach, focusing on authentication, encryption, and monitoring. This is especially important given the high traffic volume and rising costs of security breaches.
Strong Authentication Methods
Using robust authentication methods is critical. Industry standards like OAuth 2.0 and OpenID Connect (OIDC) are excellent choices for token-based authentication. According to Nicole Jones from StackHawk, these protocols allow limited third-party access while keeping primary credentials secure. For mobile and single-page drone control apps, the OAuth2 Authorization Code flow with Proof Key for Code Exchange (PKCE) is highly recommended. This setup prevents token exposure during authentication.
JSON Web Tokens (JWT) are another option for stateless authentication, but they must be implemented carefully. To minimize risks:
- Set access token expiration to 15–60 minutes.
- Use secure, rotated refresh tokens for session maintenance.
- Avoid the "none" algorithm; instead, opt for asymmetric algorithms like RS256 or ES256 for public-facing APIs.
- Store tokens in HttpOnly cookies with
SameSiteattributes, rather than local or session storage, which are vulnerable to XSS attacks.
For communication between drones and cloud systems, Mutual TLS (mTLS) ensures both the client and server verify each other's certificates. Combine this with Role-Based Access Control (RBAC) and object-level permissions to restrict access to specific drone resources based on user roles.
These authentication measures help secure drone data from unauthorized access during transmission.
Data Encryption and Secure Communication
Encryption plays a critical role in protecting sensitive drone data. Always enforce TLS 1.3 (or at least 1.2) and disable older versions like TLS 1.0 and 1.1. Use HTTP Strict Transport Security (HSTS) headers to mandate HTTPS connections. Submitting your domain for HSTS preloading can further prevent unencrypted connections.
"TLS is a baseline security requirement. Unencrypted API traffic exposes credentials, tokens, and sensitive data to man-in-the-middle attacks."
– Nicole Jones, StackHawk
For mobile drone controller apps, implement certificate pinning to thwart man-in-the-middle attacks involving fake certificates. At the same time, secure sensitive drone data at rest - such as flight logs, telemetry, and imagery - using AES-256 encryption. API keys or credentials should never be stored in plaintext; instead, use dedicated secret management tools with strict key rotation policies.
To further protect data, enforce headers like Cache-Control: no-store and Pragma: no-cache to ensure sensitive API responses aren’t cached locally or by intermediaries.
API Gateways and Monitoring Tools
API gateways act as centralized security hubs, managing authentication, rate limiting, and encryption policies across services. To block malicious traffic, deploy Web Application Firewalls (WAFs) at the gateway. These can filter out known exploits, including those listed in the OWASP Top 10. Additionally, configure the gateway to validate incoming request payloads against predefined schemas, stopping SQL injection and XSS attempts before they reach backend systems.
Implement granular rate limiting for authentication endpoints (e.g., 5–10 attempts per 15 minutes) and data-heavy operations. Use structured JSON logging but redact sensitive information like personally identifiable data, authentication tokens, and telemetry to comply with regulations. Provide clients with generic error messages while logging detailed error information server-side for debugging.
Tie structured logs and distributed tracing to real-time alerting systems. These systems can flag anomalies like spikes in failed login attempts or unusual data access patterns. For web-based dashboards, configure Cross-Origin Resource Sharing (CORS) at the gateway level to restrict API access to approved domains only.

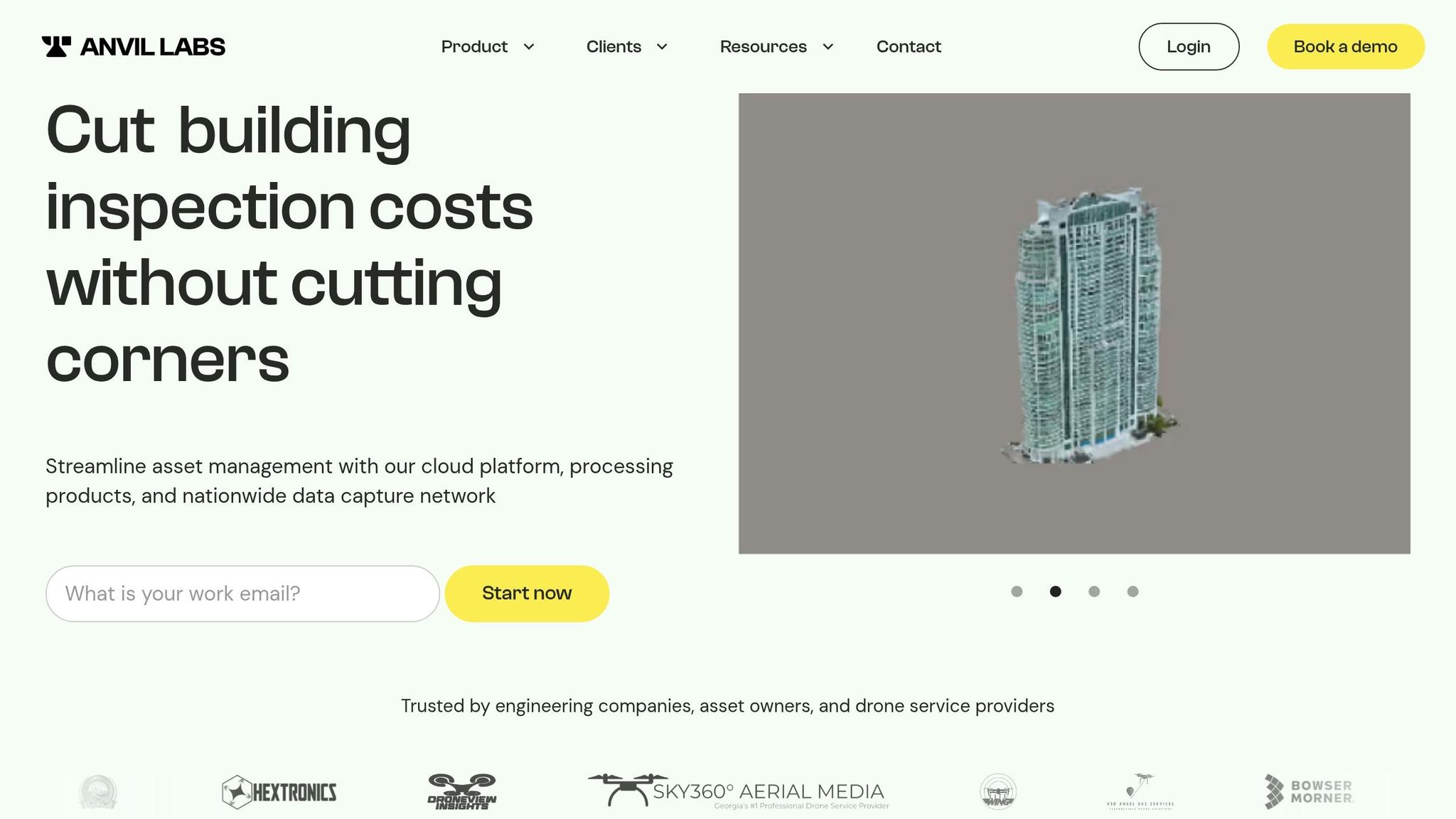

Secure API Integration with Anvil Labs
Anvil Labs transforms API security measures into practical workflows, ensuring drone data remains protected at every stage of handling. By integrating these measures, the platform enables secure management of drone data across formats like 3D models, LiDAR, thermal imagery, and more.
Secure Data Sharing and Collaboration
Anvil Labs builds on robust authentication and encryption protocols to facilitate safe collaboration on drone data. Using OAuth 2.0 and HTTPS/TLS encryption, all API endpoints are safeguarded so only authorized systems can access or upload drone-generated assets. This security layer extends to features like customizable viewers and annotation tools, making it possible to collaborate on 3D models without compromising data integrity.
Role-based access control (RBAC) ensures permissions align with user roles. For instance, site managers might have full editing privileges, while external contractors are limited to viewing specific orthomosaics. Developers interact with the platform using POST endpoints for uploads and GET endpoints for retrieval, secured with short-lived JWT tokens and refresh mechanisms.
The API gateway incorporates rate limiting and input validation tailored to drone workflows, blocking malicious uploads. For example, when sharing thermal imagery, the system validates file schemas and enforces precise permissions. This setup allows collaborators to measure and annotate directly within the platform, eliminating the need to download sensitive files. By combining robust API security with intuitive asset management, Anvil Labs provides end-to-end protection for drone data.
Securely Processing Advanced Data Types
Anvil Labs is designed to handle complex data types like LiDAR point clouds, thermal imagery, and 360-degree panoramas. The platform supports formats such as GeoJSON while ensuring data encryption at rest. Network isolation adds another layer of security, which is especially critical for industrial sites managing proprietary geospatial data. Even if external defenses are breached, unauthorized access is effectively blocked.
The platform extends security through single sign-on (SSO) integrations with tools like Matterport and AI analysis platforms. These integrations use encrypted sessions to safeguard drone data during transfers, ensuring LiDAR datasets remain secure from processing to visualization. Additionally, Anvil Labs' gateway monitors data flows for anomalies, such as unusual access to thermal imagery or excessive download attempts - potential signs of compromised credentials or insider threats. This vigilant monitoring ensures drone data remains secure throughout its lifecycle.
Conclusion
Drone data workflows come with their share of API security challenges. Issues like weak authentication, unencrypted data transfers, and inadequate input validation can expose sensitive geospatial information to significant risks. For organizations managing industrial sites, layered security measures are essential. This includes using OAuth 2.0 for authentication, TLS 1.2 (or higher) to secure data in transit, and AES-256 encryption to safeguard data at rest.
Building security into the design is critical. Tools like API gateways with rate limiting, continuous monitoring, and role-based access control help ensure that only authorized individuals can access specific datasets. When dealing with data types like LiDAR, thermal imagery, or 3D models, these protections become even more important. Such a multi-layered strategy creates a solid framework for secure API integration, as shown by Anvil Labs.
Throughout this article, we've highlighted how Anvil Labs applies these measures in practical settings. By employing OAuth 2.0, HTTPS/TLS encryption, and JWT tokens, they ensure drone data remains secure at every stage. Additional features like two-factor authentication, comprehensive audit logs, and automatic expiration for temporary users further strengthen security and promote transparency.
FAQs
What’s the easiest way to prevent unauthorized access to a specific drone’s data?
One of the simplest yet effective ways to protect a drone’s data is by using two-factor authentication (2FA). This security measure adds an extra step to the login process, making it harder for unauthorized users to gain access.
With 2FA, users need to verify their identity through two methods - such as entering a code sent via SMS, using an authenticator app, or even leveraging biometric options like fingerprints or facial recognition. By enabling this feature, you can significantly lower the chances of someone accessing your drone’s data without permission.
How can we secure MAVLink telemetry without breaking real-time performance?
To keep MAVLink telemetry secure while preserving real-time performance, you can enable message signing to confirm the authenticity of messages. It's important to fine-tune the signing process to minimize any delays. Since MAVLink allows runtime configuration, you can adjust settings to strike the right balance between security and performance. This way, your system stays protected without sacrificing responsiveness.
What rate limits should we set for drone API login and data download endpoints?
Rate limits are a crucial tool for maintaining security and avoiding misuse. For example, you can restrict login attempts to 5–10 per minute to block brute-force attacks. Similarly, controlling data download requests can help prevent excessive usage or potential exploitation of your system.
Another effective measure is using short-lived tokens for authentication. These tokens expire quickly, reducing the risk of unauthorized access. It's also important to adjust rate limits according to your system's requirements, ensuring they align with API security best practices while maintaining usability for legitimate users.
